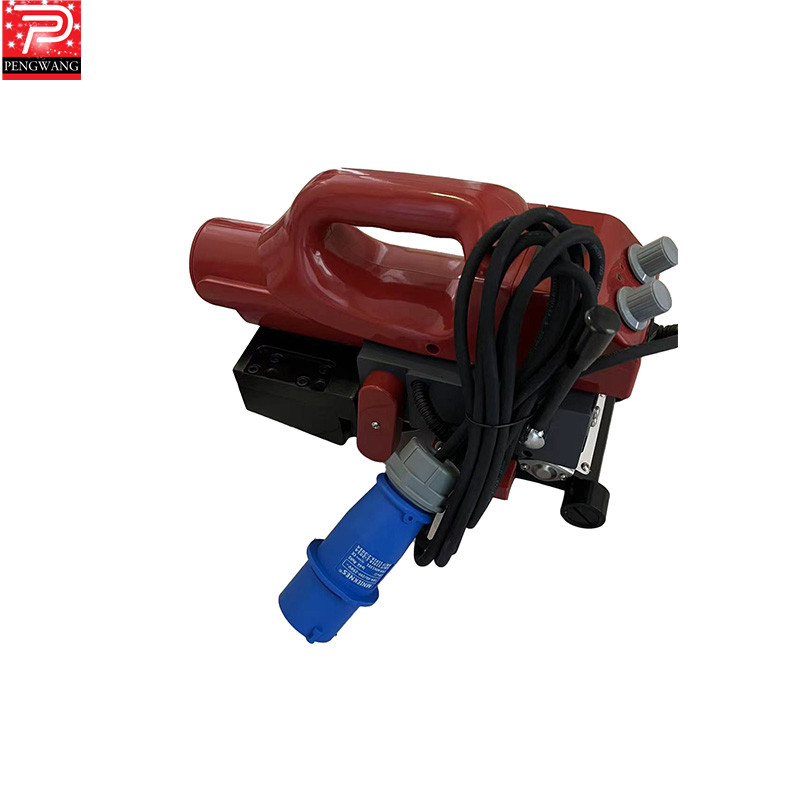

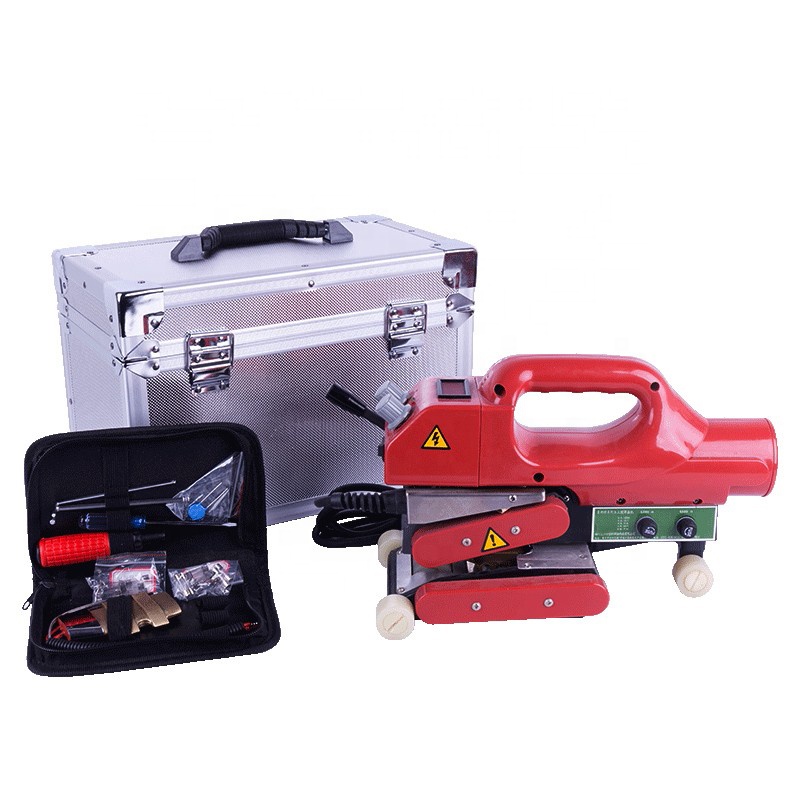

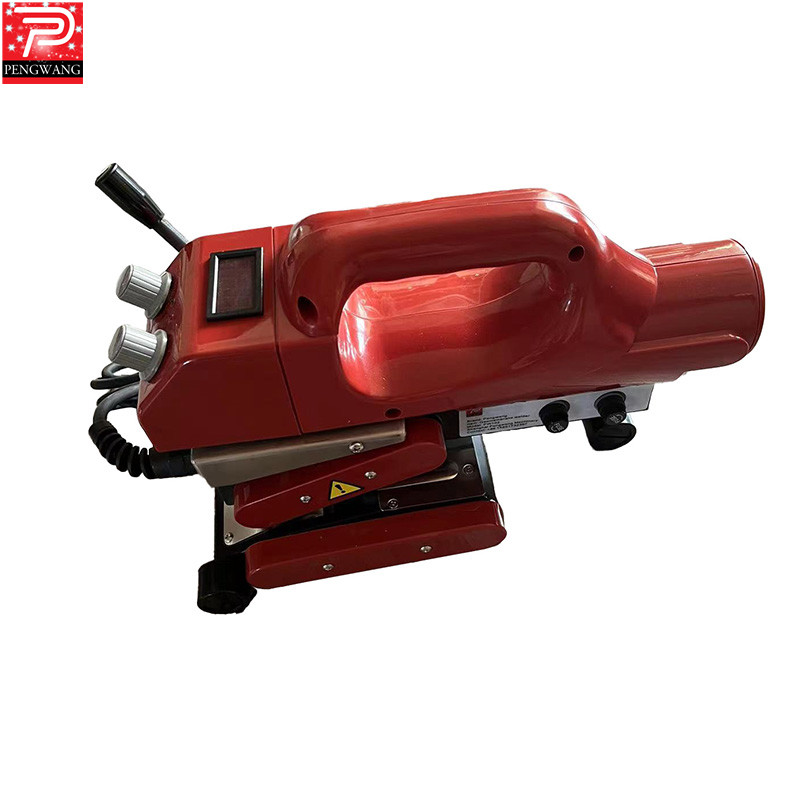

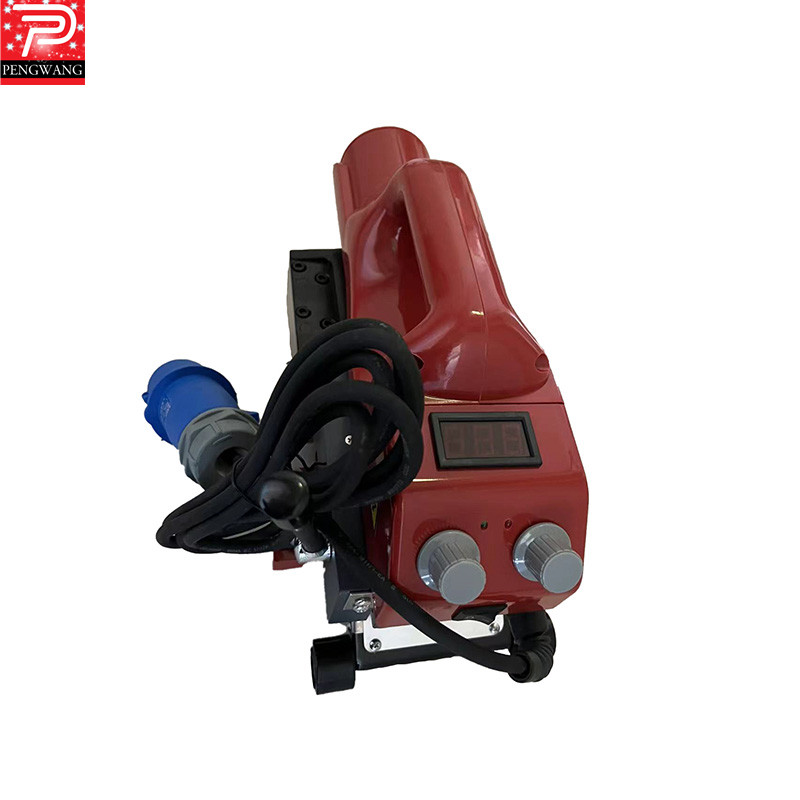

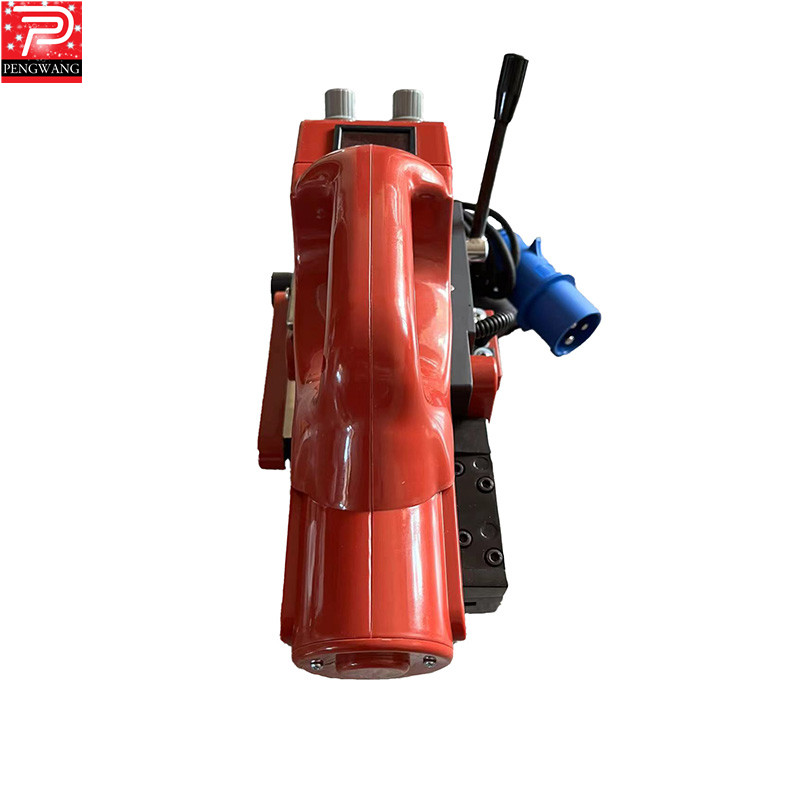

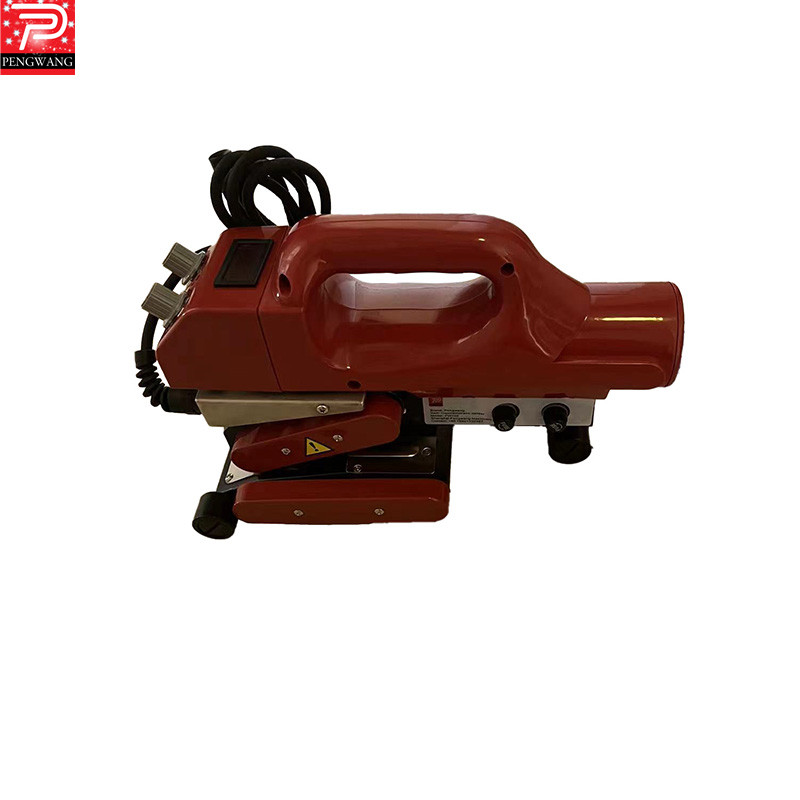

PW102 Geomebrane Welder applicable for 0.2-1.5mm material

Power:1200W Voltage: 220V Frequency: 50Hz Welding speed: 0.5-5m/min with digital display Heating temperature: 0-600℃ Material thickness: 0.2-1.5mm Welding seal thickness: 16mm×2, Intermediate cavity:12mm Joint width: 100mm N.W.: 5kg; G.W.:9kg Insulation grade: II

  • Details
  • Specifications
  • Application
  • Video
  • Download
  • Digital Screen Plastic HDPE Geomembrane Climbing Welder  Hot Wedge Welding Machine

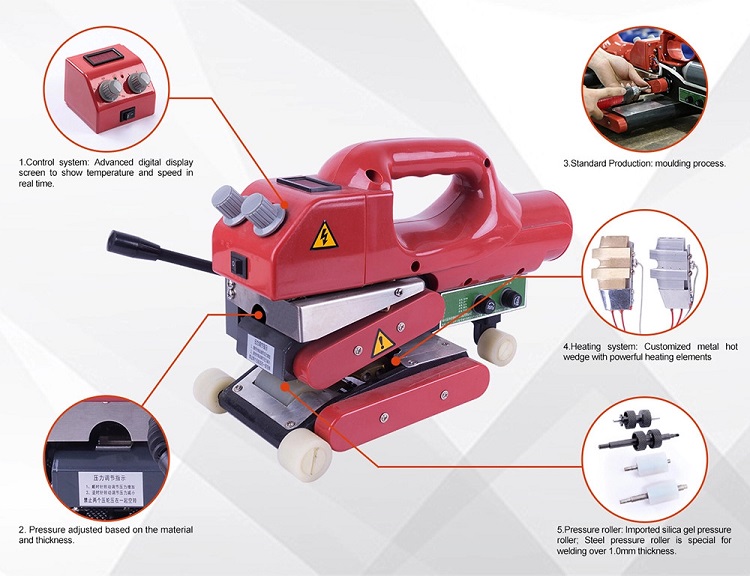

    PW102 hot wedge welder  is a hot wedge welder for welding HDPE, LDPE, EVA, PVC, ECB, PP thermo plastic materials, which is used in waterproofing projects like tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on. Pengwang welder is your good option of waterproofing project in China, and save your cost from European/US transporter market!



    1. For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.

    2. For welding membrane with thickness above 1.0mm, the steel pressure roller is the best choice.

    3. If the material is PVC, this model can weld from 0.2-2.0mm, and you can choose to assemble it with steel hot wedge.

    4. Any customized demands, you can ask us directly. We have professional technicians team.

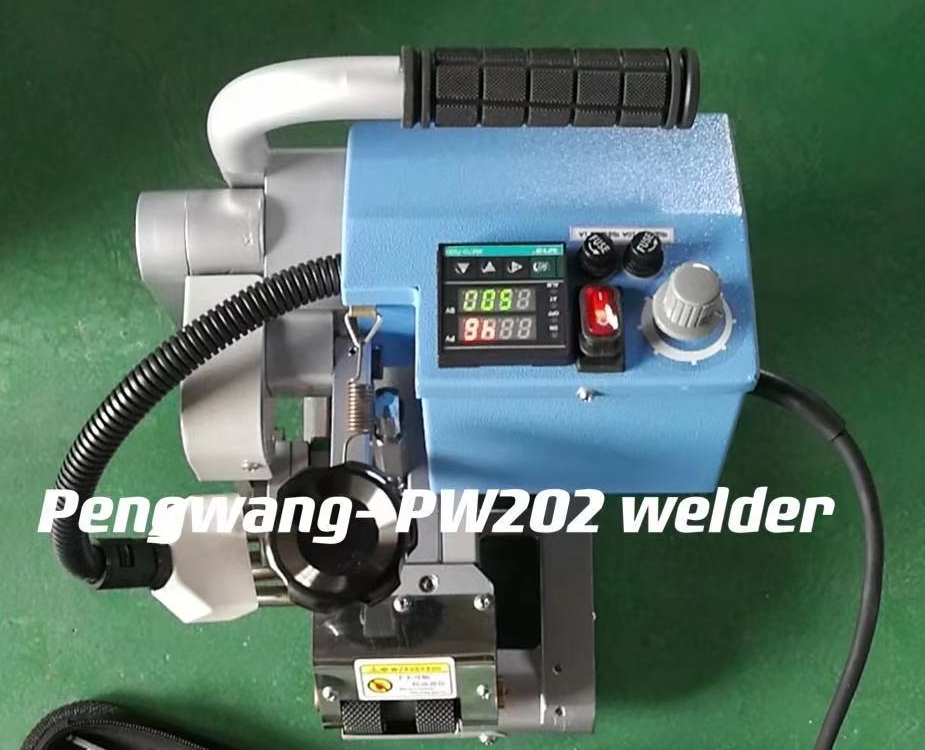

    ➪Related product: PW202 Geomembrane welder

    PW202 is one of our newly developed products, which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP etc. And it is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.



    1. The silica pressure roller is suitable for welding membrane which the thickness below 0.5-2mm.

    2. The steel pressure roller is suitable for welding membrane which the thickness between 1.0-3.0mm.

    3. Max. temperature can be reached to 800℃.

    4. Break traditional 23kg heavy weight, it's just 9kg light body weight, which makes the welding is more convenient.

    ➪Related product: PW900 Geomembrane welder

    PW900 Series Thick Geomembrane Welder adopts advanced hot wedge structure, with high power, high speed and strong pressure force; suitable for 1.0-3.0mm thickness hot melt materials such as PE, PVC, HDPE, EVA, PP, TPO. This welder is extensively used in highway/railway tunnels, urban subway, aquaculture, water protection, chemical mining, refuse landfill, sewage treatment, waterproofing projects etc.



    a. For welding membrane thickness 1.0-3.0 mm with steel pressure roller.

    b. For welding the materials that may release corrosive gas after hot fusing such as PVC and other similar material, stainless steel hot wedge (optional accessory) is preferred for extending of service life.

    c. Any else customized demands, you can ask us directly, we have a professional technicians team.
